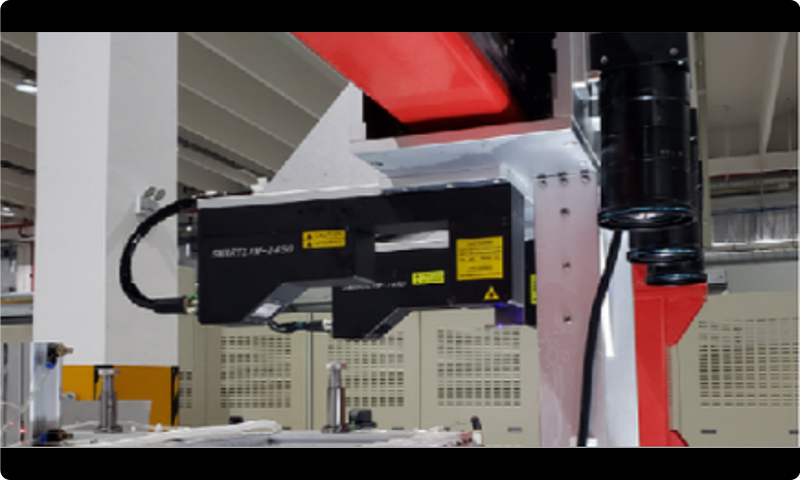

Automotive cooling plate flatness and position of critical holes measurement

Measurement items: Cooling plate flatness and position of critical holes

Details

Measurement Item

bulges and dents
Customer

A listed company of auto parts
Work piece

VW/TESLA new energy vehicle cooling plate
Downstream Industry

automotive parts
Product Model

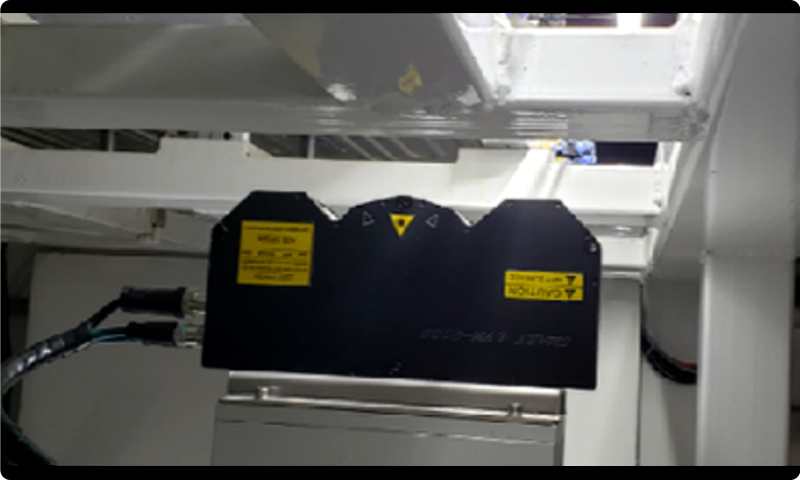

LVM1450/LVM2135
Technical Requirements

flatness of the cooling plate and position of the key holes, measurement accuracy needs to reach 20um (XYZ).
Customer Value

eliminating manual measurement, replacing CMM sampling and achieving fully automatic measurement; improving product quality, preventing defective products from flowing out to the whole vehicle plant and avoiding serious quality accidents; improving the consistency of measurement results.
