Line Profile and Position Accuracy Inspection for Water-cooled Plate Components

Measurement Items: Line Profile and Position Accuracy of Water-cooled Plate Components

Details

Measurement Item

Line Profile and Position Accuracy of Water-cooled Plate Components
Customer

Global Leader in the New Energy Thermal Management Industry
Work piece

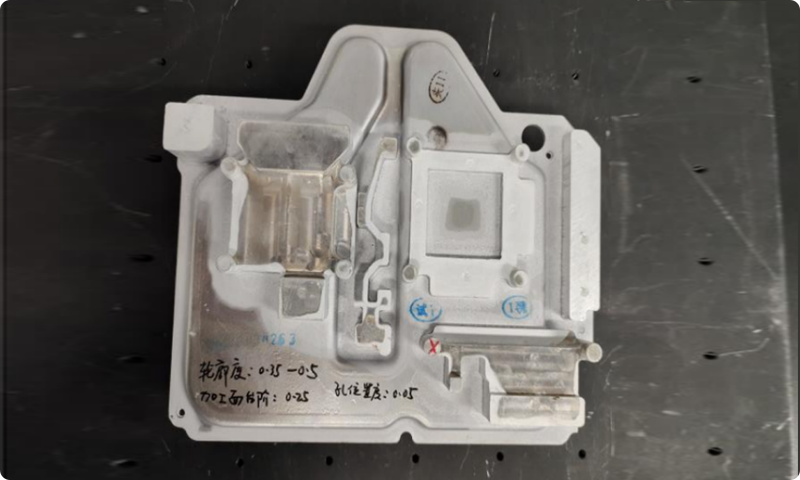

Components of Water-cooled Plate for an Internationally Renowned New Energy Vehicle
Downstream Industry

New Energy Vehicle Components and Parts
Product Model

LVM2040
Technical Requirements

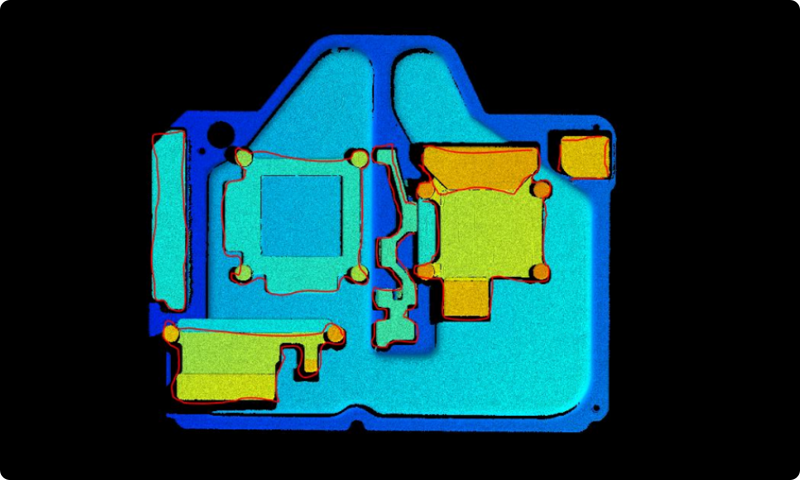

Inspect the line profile and position accuracy of the water-cooled plate components.
Camera Accuracy

80μm in the X direction, 30μm in the Z direction
Customer Value

Eliminate manual inspection and replace spot-checking with coordinates, achieving fully automatic inspection; enhance product quality, prevent defective products from reaching the vehicle manufacturer, and avoid serious quality accidents; improve the consistency of inspection results.
