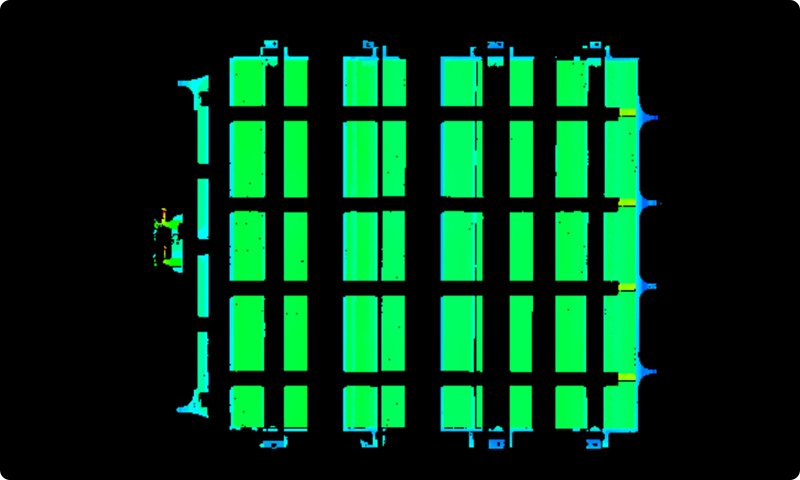

Water-cooled Plate Inspection

Measurement Items: Flatness, Step Height, Position Accuracy, and Aperture Diameter

Details

Measurement Item

Flatness, Step Height, Position Accuracy, and Aperture Diameter
Customer

Global Leader in the New Energy Thermal Management Industry
Work piece

Water-cooled Plate for an Internationally Renowned New Energy Vehicle (Made in Japan)
Downstream Industry

New Energy Vehicle Components and Parts
Product Model

LVM2040
Technical Requirements

Utilize modular assembly method to inspect flatness, step height, position accuracy, and aperture diameter.
Camera Accuracy

80um in the X direction, 30um in the Z direction
Customer Value

Eliminate manual inspection and replace spot-checking with coordinates, achieving fully automatic inspection; improve product quality, prevent defective products from reaching the vehicle manufacturer, and avoid serious quality accidents; enhance the consistency of inspection results.
